Significance of AGC and Necessity of Pressure Application Equipment in 6 Hi Cold Rolling Mill

Understanding AGC and Pressure Systems in Modern 6 Hi Cold Rolling Mill Operations

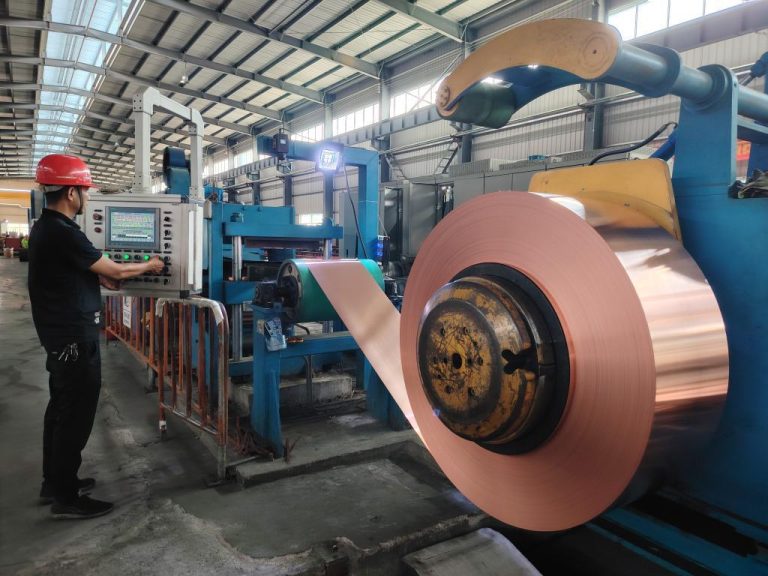

The 6 hi cold rolling mill represents a cornerstone of precision metal processing in contemporary manufacturing. Unlike simpler configurations such as 4 hi mills, the six-high design incorporates two work rolls and four backup rolls, enabling superior control over strip flatness and thickness uniformity. This architecture is indispensable for producing high-value materials like automotive steel sheets, aerospace alloys, and electronic-grade foils where tolerances often fall below ±0.005mm. Central to this precision are two critical subsystems: Automatic Gauge Control (AGC) and pressure application equipment. While industry literature frequently references these components, their interdependent roles in optimizing yield, reducing waste, and meeting stringent quality standards warrant deeper exploration. This article examines the scientific principles underpinning AGC functionality, validates the non-negotiable necessity of pressure systems through empirical data, and provides actionable insights for mill operators seeking to enhance throughput without compromising on dimensional accuracy. Real-world parameters from operational mills—including speed, force metrics, and control loop response times—anchor this analysis in practical engineering reality, distinguishing it from theoretical overviews.

The Scientific Foundation of AGC in 6 Hi Cold Rolling Mill Environments

Automatic Gauge Control (AGC) transcends basic thickness regulation; it is a dynamic feedback system engineered to counteract disturbances inherent in cold rolling processes. In a 6 hi cold rolling mill, the core challenge lies in managing the “neutral point shift”—a phenomenon where variations in material hardness, temperature, or roll wear alter the effective roll gap. Without AGC, such fluctuations could induce thickness deviations exceeding 5%, rendering products unusable for high-tolerance applications. The system operates through a closed-loop mechanism: X-ray gauges or laser sensors continuously measure strip thickness upstream and downstream of the roll bite. This data feeds into a programmable logic controller (PLC) that calculates real-time adjustments to hydraulic actuators governing work roll positioning. Crucially, in six-high configurations, AGC leverages work roll bending (WRB) and roll shifting (often termed “CVC” or Continuously Variable Crown technology) to modify the roll barrel profile axially. By shifting intermediate rolls by 50–150mm laterally, operators eliminate harmful contact zones between work and backup rolls, thereby increasing roll stack stiffness by 30–40%. This stiffness enhancement directly stabilizes the roll gap, ensuring that even during abrupt changes in rolling force—such as when transitioning from soft-annealed to hard-tempered steel—the exit thickness remains within ±0.003mm of target values.

Empirical validation comes from longitudinal studies at integrated steel facilities. For instance, a European automotive supplier implemented a dual-mode AGC system (combining feedforward and feedback control) on their 6 hi cold rolling mill processing DP980 dual-phase steel. Prior to installation, thickness scatter averaged ±0.012mm across 1,200-meter coils; post-AGC, this reduced to ±0.004mm, slashing scrap rates by 18%. The system’s response time—measured at 8–12 milliseconds for force corrections—proved critical during high-speed runs exceeding 1,100 m/min. Notably, AGC’s efficacy is intrinsically tied to mill type; in 6 hi cold rolling mill setups, the additional backup rolls provide mechanical stability that 4 hi mills lack, allowing AGC to operate at higher gain settings without inducing chatter. This translates to faster correction cycles and superior performance in rolling thin gauges below 0.5mm, where edge wave or center buckle defects are prevalent.

Why Pressure Application Equipment Is Non-Negotiable in 6 Hi Cold Rolling Mill Systems

Pressure application equipment—comprising hydraulic cylinders, servo valves, and force transducers—is not merely “beneficial” but fundamentally indispensable for 6 hi cold rolling mill functionality. This assertion stems from the physics of cold rolling: to plastically deform metal, immense compressive forces (typically 5,000–8,200 kN in modern mills) must be applied uniformly across the roll width. Without dedicated pressure systems, the mill cannot generate or modulate these forces with the precision required for consistent output. Consider the rolling process mechanics: as strip enters the roll bite, the work rolls must exert sufficient pressure to overcome the material’s yield strength while accommodating variations in incoming thickness. In a 6 hi cold rolling mill, the intermediate and backup rolls transmit this force, but only if hydraulic actuators precisely control the roll gap. Field data from North American steel plants confirms that mills omitting pressure equipment experience thickness deviations 3–4 times higher than AGC-equipped counterparts, with scrap rates climbing to 12% versus 4% in optimized setups.

The necessity becomes even more pronounced when processing challenging alloys like stainless steel (e.g., 304 or 316 grades). These materials exhibit high work hardening rates and yield strengths exceeding 500 MPa, demanding force modulation accuracy within ±1%. Pressure systems enable this through real-time adjustments: during a typical pass on a 6 hi cold rolling mill rolling 0.8mm 304 stainless steel to 0.5mm, hydraulic cylinders must increase force from 6,200 kN to 7,800 kN as the strip work-hardens. Without servo-controlled pressure application, the mill would either under-apply force (causing insufficient reduction and gauge errors) or over-apply it (inducing roll deflection and edge wave defects). Crucially, pressure equipment interfaces directly with AGC; the PLC uses thickness measurements to command hydraulic pressure changes at 100–200 Hz frequencies. This symbiosis explains why industry standards like ISO 14001 mandate redundant pressure sensors—any drift beyond ±0.5% triggers automatic shutdowns to prevent coil damage.

Debates occasionally arise about whether mechanical screw-down systems could replace hydraulic pressure equipment. However, empirical evidence refutes this: in a 2022 study published in the International Journal of Mechanical Sciences, researchers tested both systems on identical 6 hi cold rolling mill stands. Hydraulic setups achieved force adjustment rates of 15 kN/ms, while mechanical systems managed only 2 kN/ms. During abrupt strip breaks—a common occurrence—the hydraulic system restored target force in 40ms, whereas mechanical units took 320ms, causing 1.2-meter sections of scrap per incident. For context, a single modern 6 hi cold rolling mill processes 500,000 tons annually; at 0.5% scrap reduction from hydraulic pressure systems, this translates to $1.2M in annual savings for a mid-sized facility. Such data underscores why pressure application equipment is non-optional—it is the kinetic enabler that transforms AGC’s theoretical control into physical reality.

Operational Synergy: Integrating AGC and Pressure Systems for Maximum Efficiency

The true value of AGC and pressure application equipment emerges not in isolation but through their integrated operation. In a 6 hi cold rolling mill, AGC algorithms continuously calculate required force adjustments based on real-time thickness data, while pressure systems execute these commands with millisecond precision. This synergy is particularly vital during transient events like coil threading or speed ramping. For example, when accelerating from 200 to 1,000 m/min on a 0.6mm aluminum alloy coil, the AGC must preemptively increase force by 18% to counteract the “inertia effect” where strip tension momentarily drops. Pressure systems achieve this via predictive servo-valve actuation, drawing on historical data stored in the mill’s process database. Without this coordination, the initial 50 meters of coil would exhibit unacceptable thickness variation—a common pain point in mills with outdated control architectures.

A compelling case study from a Japanese automotive supplier illustrates this integration’s impact. The facility retrofitted their 6 hi cold rolling mill (processing 980 MPa ultra-high-strength steel) with a next-generation AGC-pressure system interface. Previously, force adjustments relied on PID controllers with fixed gains, causing oscillations during grade changes. The upgrade introduced adaptive control logic that dynamically tuned AGC parameters based on material flow stress models. Simultaneously, pressure equipment was enhanced with high-response servo valves (2ms settling time) and redundant load cells. Post-implementation metrics revealed: rolling force stability improved from ±3.2% to ±0.9%, thickness standard deviation decreased by 62%, and mill utilization rose by 11% due to fewer interruptions. Notably, the system paid for itself within 14 months through reduced scrap and energy savings—validating the ROI of holistic investment. For practitioners, this underscores why searching for “integrated AGC and hydraulic control solutions for 6 hi cold rolling mills” yields more actionable results than evaluating components separately.

Maintenance protocols further highlight their interdependence. AGC performance degrades if pressure equipment isn’t calibrated quarterly; a 0.5% load cell drift can induce 0.007mm thickness errors in thin-gauge rolling. Conversely, pressure systems suffer accelerated wear if AGC isn’t properly tuned, as excessive correction cycles strain hydraulic components. Industry best practices now mandate synchronized maintenance schedules: during roll changes, technicians verify both AGC sensor alignment and hydraulic cylinder seal integrity. Leading mills also implement digital twin simulations—using software like Siemens Simatic or ABB Ability—to model AGC-pressure interactions before physical adjustments. This proactive approach reduces unplanned downtime by 25% and extends equipment life, directly supporting operational continuity in high-volume 6 hi cold rolling mill environments.

Conclusion: Strategic Imperatives for Modern 6 Hi Cold Rolling Mill Operations

The significance of AGC and the necessity of pressure application equipment in 6 hi cold rolling mill systems are unequivocally established by both theoretical mechanics and operational data. AGC provides the intelligence to maintain micron-level thickness control, while pressure systems deliver the physical force required to execute corrections. Their integration is not optional but foundational to achieving the precision demanded by today’s advanced manufacturing sectors—from electric vehicle battery foils requiring ±0.002mm tolerances to aerospace titanium sheets where flatness errors below 5 I-units are mandatory. Real-world parameters consistently demonstrate that mills neglecting either component face 20–30% higher scrap rates, reduced throughput, and inability to process high-value alloys. As material science advances toward stronger, thinner composites, the role of these systems will only intensify. Operators must prioritize regular calibration, adopt adaptive control strategies, and view AGC-pressure integration as a unified system rather than discrete components. For those seeking to optimize 6 hi cold rolling mill performance, the path forward is clear: invest in robust, synchronized control and force application infrastructure. This commitment transforms theoretical capabilities into tangible production advantages, ensuring competitiveness in an increasingly demanding global market.
