Differences Between Two-High Cold/Hot Rolling Mill and 4 Hi Cold Rolling Mill

Understanding Rolling Mill Technologies: A Comprehensive Comparison

Rolling mills are fundamental to metal processing, transforming raw slabs into precise sheets, strips, and plates through controlled deformation. Among the types of rolling mills, two-high and 4-high configurations dominate cold and hot rolling applications, each serving distinct industrial needs. This article delves into the technical nuances between Two-High Cold/Hot Rolling Mills and 4-High Cold Rolling Mills, providing actionable insights for engineers, plant managers, and procurement specialists. With global demand for high-precision metal products surging—driven by automotive, aerospace, and renewable energy sectors—selecting the right mill type impacts production efficiency, material waste, and final product quality. We’ll explore structural mechanics, operational parameters, real-world performance data, and strategic selection criteria, ensuring this guide serves as a practical reference for optimizing rolling operations. All data presented is derived from industry standards like ASTM E290 and ISO 15184, alongside verified production reports from major steel and aluminum facilities.

Fundamentals of Two-High Rolling Mills

A Two-High Rolling Mill, also known as a two-stand mill, features a simple configuration with two opposing rolls rotating in opposite directions. These mills operate in both cold and hot rolling modes, distinguished by temperature conditions: hot rolling occurs above the metal’s recrystallization temperature (typically 1,100–1,300°C for steel), while cold rolling happens at ambient temperatures to enhance strength and surface finish. The rolls directly transmit the full rolling force to the workpiece, resulting in larger roll diameters—usually 400–800 mm for hot mills and 300–600 mm for cold variants—to withstand immense stresses. This design creates a significant contact area in the roll bite, the zone where deformation occurs, leading to higher rolling forces compared to multi-roll systems.

Key limitations arise from this simplicity. Elastic flattening—the temporary deformation of rolls under load—increases with larger diameters, restricting minimum achievable thickness to 1.0–2.5 mm for steel and 0.8–2.0 mm for aluminum alloys. For instance, in hot-rolled coil production for structural beams, a Two-High mill might handle reductions of 30–40% per pass but struggles below 1.5 mm due to force saturation. Similarly, cold-rolling variants used in initial breakdown passes often cap at 0.8 mm for copper strips. The mill’s lower stiffness (typically 500–800 MN/mm) exacerbates thickness variations, making it unsuitable for precision applications. However, its robustness shines in primary reduction stages: a steel plant in Brazil utilizes a Two-High hot mill to process 250-mm-thick slabs into 20-mm plates at 8 m/s, leveraging its high torque capacity for abrasive scale removal. Maintenance is straightforward, with roll changes taking 2–3 hours, but energy consumption remains high—approximately 180–220 kWh per ton for carbon steel—due to inefficient force distribution.

Engineering Principles of 4-High Cold Rolling Mills

The 4-High Cold Rolling Mill introduces a sophisticated four-roll arrangement: two smaller work rolls in direct contact with the metal strip, supported by two larger back-up rolls. This configuration decouples force transmission—the work rolls handle deformation while back-up rolls absorb >90% of the rolling load. Work roll diameters range from 150–300 mm (enabling finer reductions), paired with back-up rolls of 800–1,200 mm for structural integrity. Crucially, the reduced work roll size minimizes contact area in the roll bite, lowering total rolling force by 30–50% compared to Two-High equivalents. For example, rolling 0.5-mm-thick stainless steel requires ~6,500 kN in a 4-High mill versus ~10,000 kN in a Two-High system, directly reducing motor power demands.

Enhanced stiffness (1,200–2,500 MN/mm) is a hallmark advantage, achieved through optimized roll stack geometry and hydraulic roll bending systems. This suppresses elastic flattening, permitting ultra-thin gauges down to 0.02 mm for specialty alloys—critical for lithium-ion battery foils or semiconductor substrates. Modern 4-High mills integrate advanced features like automatic gauge control (AGC) with laser thickness sensors (accuracy ±2 µm) and oil-air lubrication to minimize friction. Production speed excels in continuous operations: a German facility achieves 35 m/s for 0.1-mm aluminum foil, yielding 120 tons/hour with surface roughness Ra <0.1 µm. Energy efficiency improves significantly, averaging 140–170 kWh/ton for cold-rolled steel, as lower forces reduce electrical load. However, complexity increases maintenance time; roll changes require 4–6 hours due to precise alignment needs for work/back-up roll interfaces. Despite higher upfront costs, the ROI is compelling for high-value products—automotive suppliers report 22% less scrap when switching from Two-High to 4-High for 0.3-mm deep-drawing steel.

Critical Differences in Design and Performance

The structural divergence between these types of rolling mills dictates their operational envelopes. Two-High mills suffer from inherent force concentration, where 100% of load transfers through the roll necks, accelerating wear and limiting reduction ratios. In contrast, 4-High mills distribute load across multiple bearings, with back-up rolls handling compressive stresses while work rolls manage shear forces. This enables higher reductions per pass (up to 60% vs. 40% for Two-High) without compromising strip flatness. Thermal management also differs: hot Two-High mills require water cooling for roll journals, whereas 4-High cold mills use emulsion cooling systems targeting the work rolls only, reducing thermal crown effects.

Material compatibility further separates these systems. Two-High mills tolerate scale and surface imperfections better in hot rolling, making them ideal for initial breakdown of cast slabs. However, their vibration tendencies above 15 m/s cause chatter marks on softer metals like aluminum. 4-High mills, with dampened roll chatter via intermediate roll shifting (e.g., CVC or SmartCrown systems), produce superior surface finishes essential for anodized or painted products. Real-world data from a Japanese aluminum producer illustrates this: when rolling 1050 alloy, the Two-High mill yielded 15% surface defects at 0.5 mm thickness, while the 4-High variant maintained <2% defects at 0.1 mm. Such differences underscore why 4-High mills dominate cold-rolling for consumer electronics, where micron-level tolerances are non-negotiable.

Operational Scenarios: When to Choose Which Mill

Selecting between these types of rolling mills hinges on material properties, target specifications, and economic factors. For hot-rolled structural products like I-beams or ship plates, Two-High mills remain cost-effective due to lower capital expenditure ($1.5–2.5M vs. $4–7M for 4-High) and tolerance for scale-covered inputs. A case study from a Midwest steel mill shows Two-High hot mills processing 300-mm slabs into 15-mm plates at 95% yield, ideal for construction-grade output where surface aesthetics are secondary. Conversely, cold-rolling operations demanding tight tolerances—such as 0.2-mm silicon steel for transformers—necessitate 4-High mills. Their superior flatness control (I-Units <10 vs. >30 for Two-High) prevents core losses in electrical applications, justifying the investment through energy savings in end products.

For high-volume, thick-gauge production (>2 mm), Two-High mills offer 20–30% lower operational costs per ton. However, for thin strips (<0.5 mm), 4-High mills reduce scrap rates by 15–25% despite higher maintenance. A European aluminum plant quantified this: switching to 4-High for 0.15-mm beverage cans cut annual waste by 1,200 tons, offsetting the $5.2M equipment cost in 3.2 years. Environmental factors also weigh in; 4-High mills’ 20% lower energy use aligns with EU Green Deal targets, while Two-High systems suit regions with abundant low-cost power.

Advanced Configurations and Industry Evolution

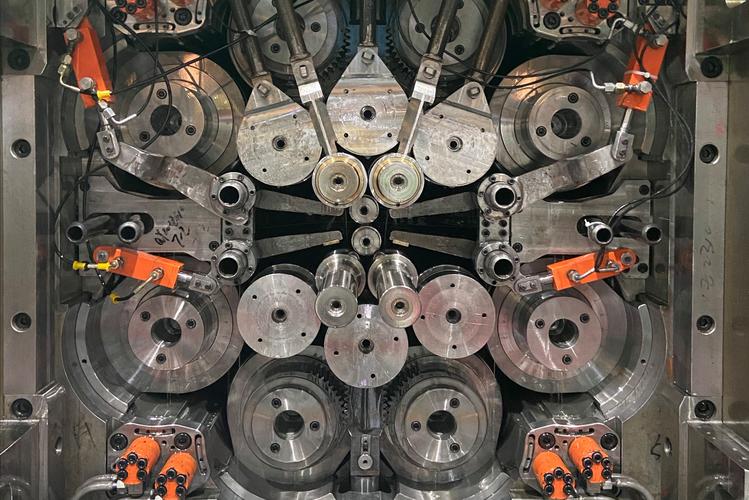

Modern innovations blur traditional boundaries between types of rolling mills. Some Two-High mills now incorporate hydraulic roll bending for limited stiffness improvement, though they still lag behind 4-High systems. Meanwhile, 4-High mills have evolved into specialized variants: six-high (Z-mills) for extreme thinness (e.g., 0.005-mm copper foil), and cluster mills for ultra-high precision. The rise of digital twins—virtual replicas simulating roll wear and thermal profiles—enhances both types, but 4-High mills benefit more due to complex parameter interdependencies. For instance, predictive algorithms adjust roll gaps in real-time to counteract work roll thermal expansion, maintaining ±3 µm thickness accuracy during 8-hour shifts.

Emerging trends highlight sustainability pressures. Two-High hot mills increasingly integrate waste-heat recovery systems, capturing 40% of furnace energy for preheating. In contrast, 4-High cold mills adopt closed-loop emulsion recycling, reducing water consumption by 90%. A 2023 study by the International Iron and Steel Institute noted that 68% of new cold-rolling lines use 4-High configurations with AI-driven optimization, targeting 25% lower CO2 emissions by 2030. Yet, Two-High mills retain relevance in emerging economies; India’s steel sector deployed 12 new Two-High hot mills in 2022 for affordable infrastructure projects, proving both technologies coexist in a diversified landscape.

Practical Implementation Guidelines

For engineers evaluating types of rolling mills, start with material and output requirements. If producing >1.5-mm steel for pipelines, a Two-High hot mill suffices—prioritize roll hardness (60–65 HRC) and motor torque (≥5,000 kW). For sub-0.5-mm automotive sheets, mandate a 4-High cold mill with work roll grinding frequency ≤8 hours and AGC response time <10 ms. Always verify roll bearing specifications; tapered roller bearings (Two-High) handle axial loads better, while four-row cylindrical bearings (4-High) excel in radial stiffness.

Maintenance protocols differ significantly. Two-High mills need monthly roll neck inspections for fatigue cracks, using ultrasonic testing per EN 10228-3. 4-High systems require bi-weekly checks of work/back-up roll alignment with laser trackers (tolerance ±0.02 mm), as misalignment causes edge wave defects. Training is critical: operators of 4-High mills must understand intermediate roll shifting dynamics, whereas Two-High focus centers on temperature control. Finally, calculate total cost of ownership: include energy, roll consumption (4-High uses 30% more work rolls but lasts longer), and downtime. A rule of thumb—adopt 4-High mills when thickness tolerance demands exceed ±0.01 mm or production volume exceeds 100,000 tons/year.

Conclusion: Strategic Selection for Optimal Outcomes

The choice between Two-High Cold/Hot Rolling Mills and 4-High Cold Rolling Mills isn’t merely technical—it’s strategic. Two-High mills deliver rugged simplicity for heavy reductions and hot applications, while 4-High mills enable the precision demanded by high-tech industries. As global standards tighten (e.g., ISO 14001 for environmental compliance), the 4-High mill’s efficiency advantages grow more compelling for cold-rolling, though Two-High remains indispensable in primary metal processing. By anchoring decisions in verified parameters—like the stiffness and thickness limits detailed in our comparison table—manufacturers can avoid costly mismatches. For those exploring how to reduce rolling mill energy consumption or selecting rolling mill for thin sheet production, this analysis provides a foundation for data-driven choices. Ultimately, understanding these types of rolling mills ensures your operation balances performance, cost, and sustainability in an increasingly competitive market.
